FFS designs and manufactures diesel engine-driven fire pumps, featuring our unique Bellhousing solution that seamlessly connects the fire pump to the diesel engine. These units are electronically governed and turbocharged to ensure efficient, reliable operation. Known for their high performance, our Bellhousing-mounted diesel engine pumps stand out for their lightweight, compact design, setting a new standard in the market for space-saving without sacrificing efficiency. Engineered for versatility, these pumps support a range of capacities from 300 to 3200 m^3/h, embodying FFS's commitment to delivering solutions that combine improved fuel efficiency with ease of installation and maintenance. Our innovative approach results in significant shipyard savings by reducing the need for additional skid, assembly, alignment, and external cooling components.
Products

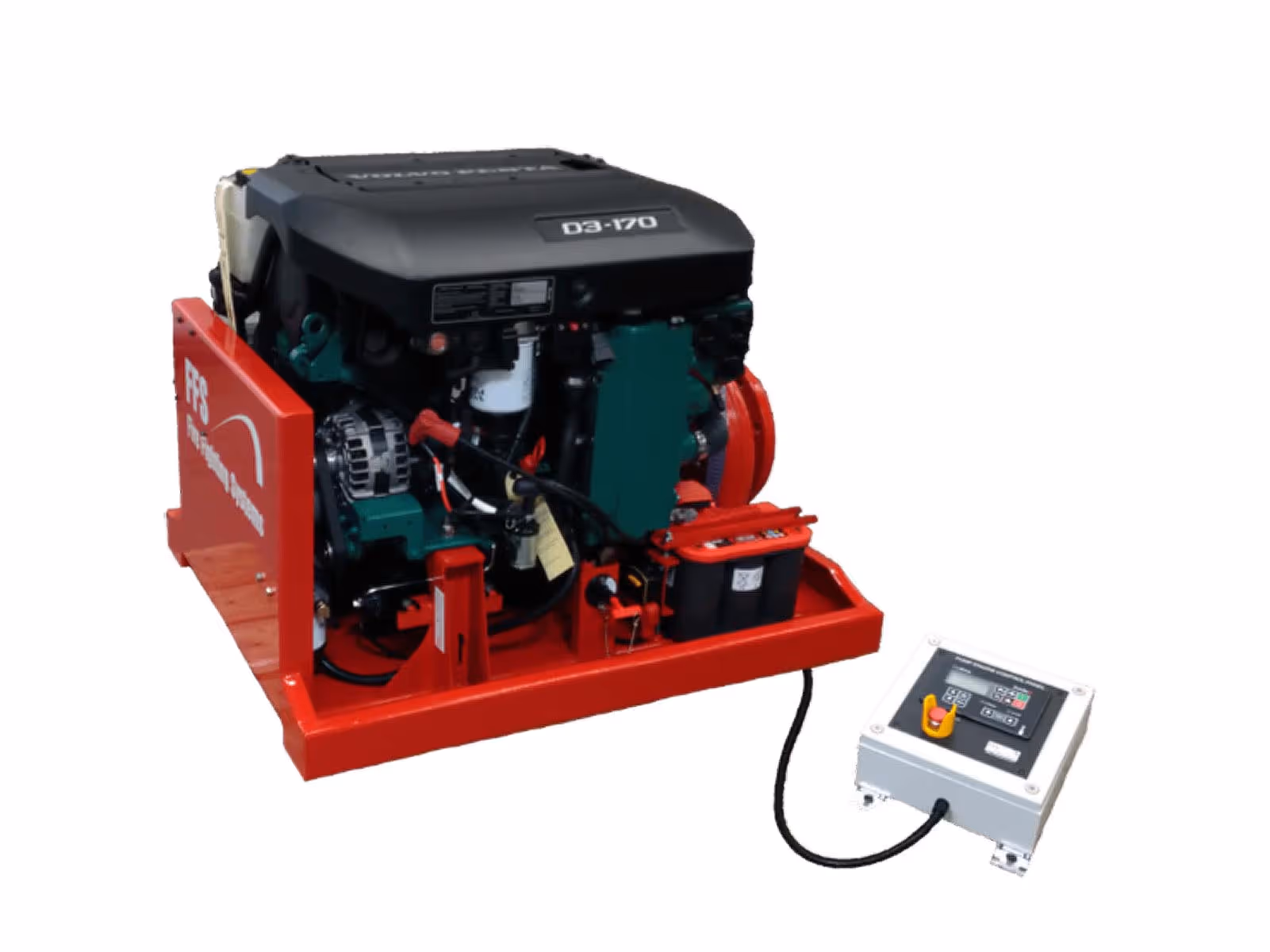

SFP 100x150 D3/Steyr
Flow:
5.000 LPM, 1320 GPM, 300 m3/h
Pressure:
10 bar
Weight:
Info:
Monitors:
Valves:
Pumps:
Starter:
kW-h:
Mix:
Throw Length:
Details:

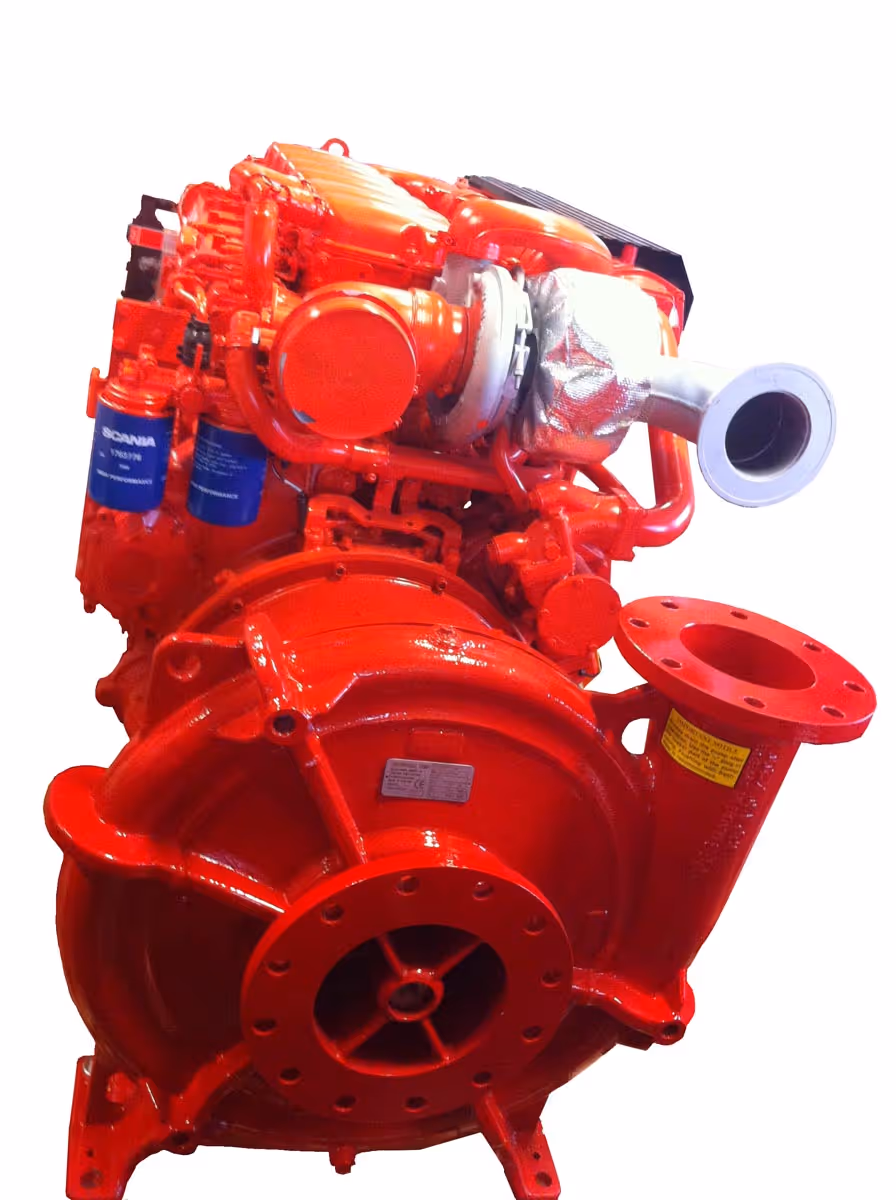

SFP 150x200 D8
Flow:
10.000 LPM, 2640 GPM, 600 m3/h
Pressure:
12 bar
Weight:
Info:
Monitors:
Valves:
Pumps:
Starter:
kW-h:
Mix:
Throw Length:
Details:
SFP 250x350 D16 / C15
Flow:
20.000 LPM, 5280 GPM, 1200 m3/h
Pressure:
13 bar
Weight:
Info:
Monitors:
Valves:
Pumps:
Starter:
kW-h:
Mix:
Throw Length:
Details:
SFP 300x400 C32
Flow:
53.000 LPM, 14.000 GPM, 3200 m3/h
Pressure:
13 bar
Weight:
Info:
Monitors:
Valves:
Pumps:
Starter:
kW-h:
Mix:
Throw Length:
Details:

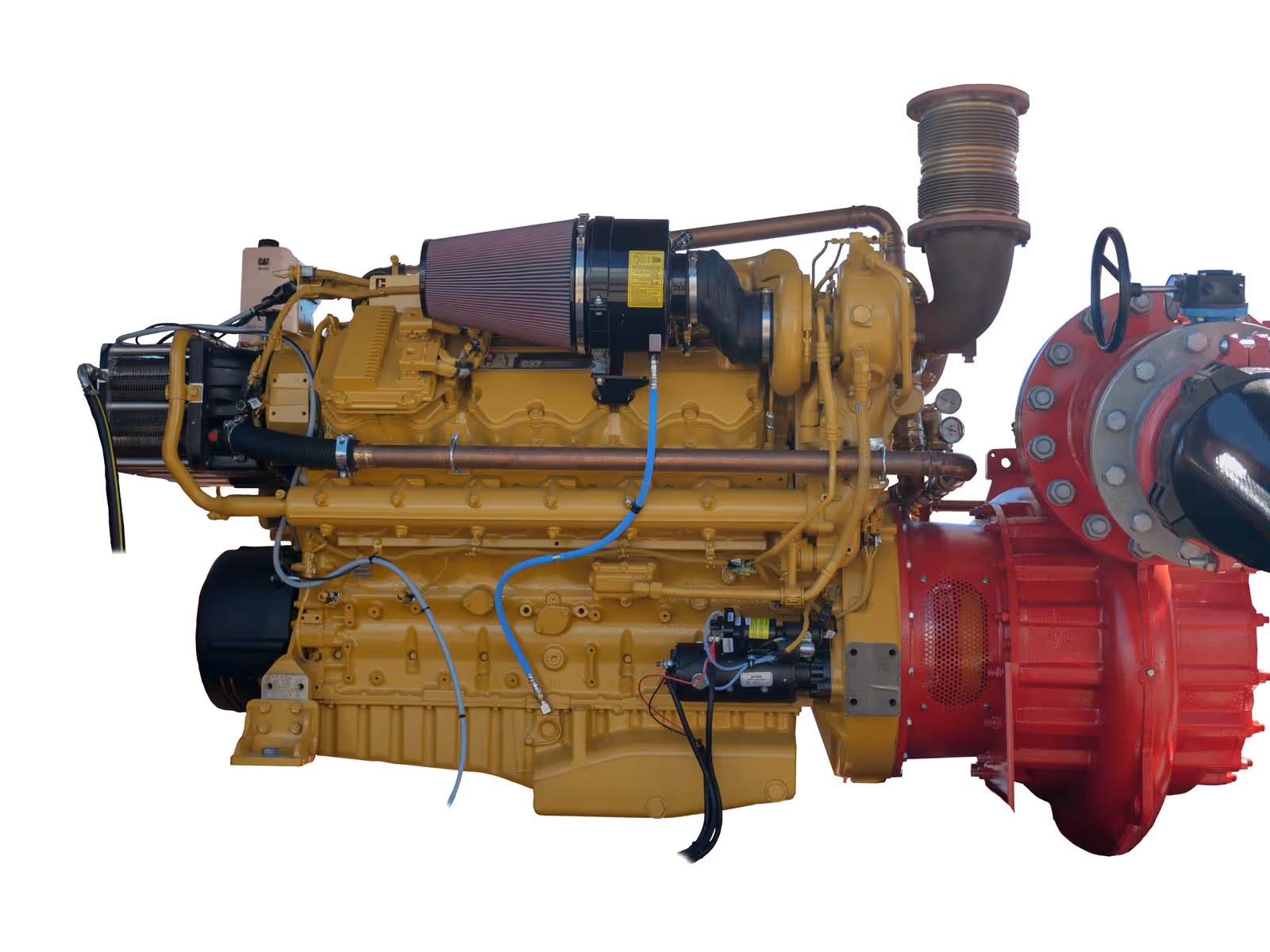

SFP 400x500 C32
Flow:
53.000 LPM, 14.000 GPM, 3200 m3/h
Pressure:
13 bar
Weight:
Info:
Monitors:
Valves:
Pumps:
Starter:
kW-h:
Mix:
Throw Length:
Details:
Key Features:
Through the FFS Bellhousing solution, we provide an advanced alternative to traditional fire pump setups, delivering a range of operational benefits from reduced installation complexity to enhanced system integrity and performance.
- Leak-Free Seal Design: The FFS Bellhousing solution incorporates a non-leaking seal, preventing water from dripping into the vessel and maintaining a clean environment.
- Compact and Space-Efficient: Designed to be the most compact solution on the market, it optimizes engine room layout by saving valuable space without compromising performance.
- Lightweight and Cost-Saving: By eliminating the need for separate skids, our design is not only lighter but also more cost-effective, reducing both initial and operational expenses.
- Simplified Installation: Our system allows for easy installation with a flat level of mounting support, eliminating the need for complex alignment between the engine and pump, thereby saving time and labor costs.
- Self-Cooling System: Features an internal cooling circuit that negates the need for vessel-based cooling, ensuring the system is self-reliant and enhances overall reliability.
